Injection Molding Design Guide: How to reduce cost?

Developing economical and structurally sound components requires a deep understanding of manufacturing mechanics. Engineers constantly balance functionality against tooling expenses and cycle times. This dynamic becomes especially critical when transitioning from prototyping to high-volume manufacturing. By applying rigorous design principles early in the development phase, organizations can significantly reduce overhead.

How to reduce the cost of injection molded parts is the final section of my injection molding guide. Next, I will present some injection molding saving costs ideas in this article. This article provides a logical framework for optimizing product designs, minimizing material waste, and streamlining tooling structures to achieve better economic outcomes.

Part Design for Cost Efficiency

Consolidating Functions into Single Injection Molding Components

Tooling represents a substantial capital investment. Designing multi-functional components helps distribute these upfront mold costs, thereby lowering the development expense of individual units. Because polymer shaping allows for highly complex internal geometries, a single molded element can frequently replace multiple components manufactured through traditional methods.

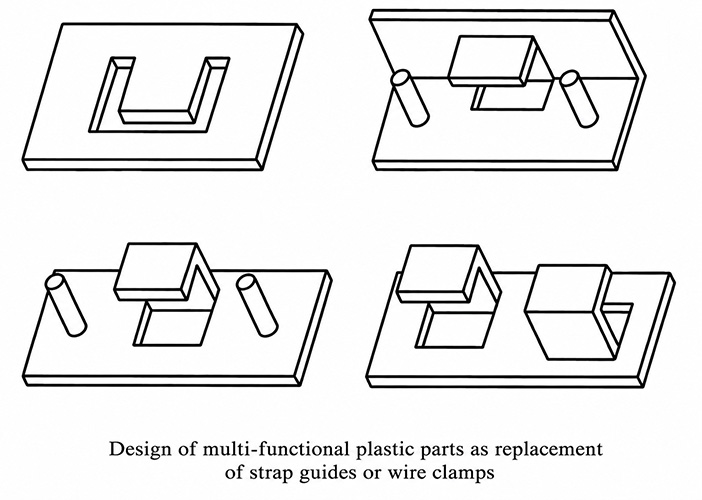

For example, in electronic hardware, managing cable routing is critical for heat dissipation and electromagnetic interference control. Instead of purchasing and assembling separate cable ties or clips, engineers can integrate simple retaining features directly into the main housing.

Consolidating these features eliminates separate fastening hardware and streamlines the final assembly workflow.

Minimizing Raw Material Consumption

Polymer resins are petroleum derivatives, meaning their market pricing fluctuates with global oil reserves. Historically, spikes in crude oil costs have forced manufacturers to raise retail prices to maintain margins. Consequently, minimizing material usage without compromising structural integrity is a primary directive.

Reducing wall thickness not only cuts material volume but also shortens the cooling phase during Plastic Injection Molding Processing, directly decreasing operational expenses. To achieve this reduction effectively, engineers should apply the following tactics:

• Enhance component stiffness by adding structural ribs rather than uniformly increasing wall thickness.
• Core out excessively thick sections of the part to remove unnecessary material.

Navigating Tolerances and Geometrical Complexity

The Financial Impact of Strict Tolerances

Table 1: Factors Affecting Dimensional Tolerances of Plastic Parts

Plastic Material Properties	Product Design	Mold Design	Injection Molding Process
Shrinkage (isotropic and anisotropic)	Product structure	Mold precision	Injection machine performance
Dimensional stability	Wall thickness	Number of cavities	Injection pressure / speed
Viscosity	Draft angle	Runner system	Holding pressure / speed
Whether reinforced fibers are added	Symmetry	Ejection system	Melt temperature and mold temperature
	Surface treatment	Cooling system	Clamping force
	Part dimensions	Mold design / layout	Repeatability capability

Table 2: Three Grades of Dimensional Tolerances for Plastic Parts

Injection Molding Dimensional Tolerance Grade	General Injection Molding	Technical Injection Molding	Precision Injection Molding
Cost Index	100	170	300
Mold Precision Requirements	Standard mold machining technology	Higher mold machining accuracy required	High-precision mold machining technology
Mold Cavity Requirements	Multi-cavity mold	Multi-cavity molds possible in some cases	Single-cavity mold
Injection Molding Process Parameter Requirements	Process parameters are not strictly controlled	Process parameters require tighter control	Process parameters require strict monitoring
Regrind Material Usage	Regrind material can be reused	Regrind material can be reused within limits	Regrind material is not permitted
Inspection	Occasional inspection	Statistical quality control	Statistical process control

The KISS (Keep It Simple, Stupid) principle applies heavily to component design. According to Tables 1 and 2, overly complex shapes render the mold structure cumbersome; this not only drives up manufacturing costs but may also compromise the quality and performance of the parts. While consolidating functions is encouraged, it should not lead to convoluted geometries that defeat the fundamental goal of cost reduction.

Furthermore, enforcing rigorous dimensional tolerances drastically increases the financial burden. Tighter specifications demand higher-precision mold machining, limit the number of viable cavities per mold, and necessitate stringent statistical process controls and inspections.

Engineers can mitigate tolerance-related expenses through strategic choices:

• Specify low-shrinkage resins for applications requiring high dimensional accuracy.
• Relax tolerance demands in areas where mold cavities align with inserts, lifters, or sliders, as these introduce alignment errors.
• Predict potential warpage zones through CAE simulation and avoid assigning critical tolerances to those specific regions.

Eliminating Undercuts to Simplify Tooling

Undercuts are geometric features, such as lateral openings or side bosses, that prevent a part from ejecting normally. To release these features, the mold must incorporate side-actions and core-pulling mechanisms like lifters or sliders. These mechanisms are highly complex and stand as a major factor in driving up tooling costs.

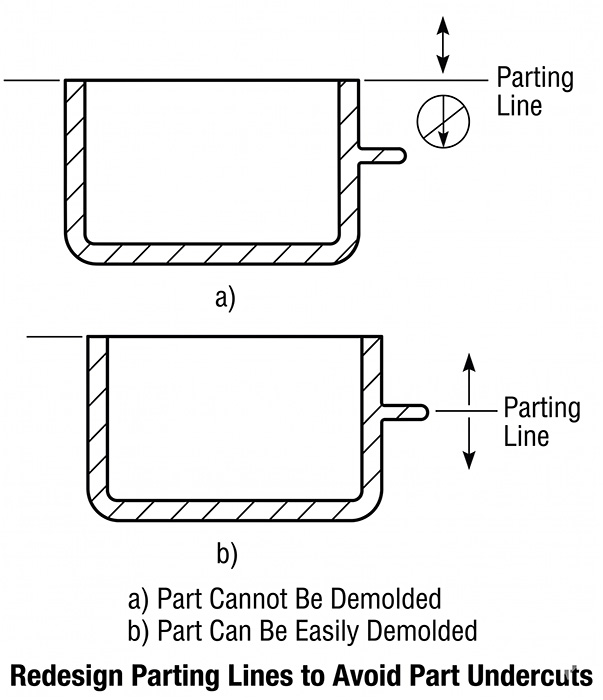

Avoiding undercuts entirely is a proven strategy for lowering initial investment. Often, a simple adjustment to the parting line orientation allows the part to eject without mechanical interference.

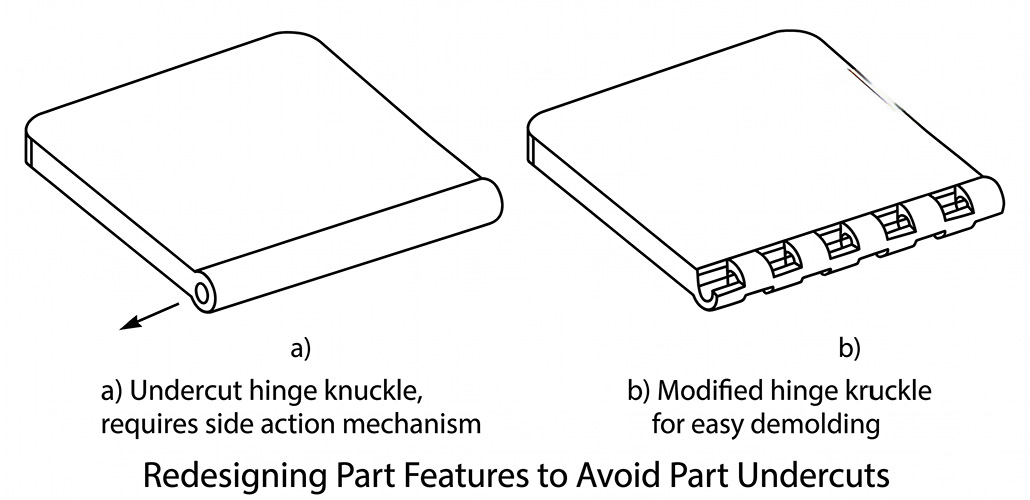

When parting line adjustments are insufficient, engineers should modify the functional features themselves to eliminate the trap.

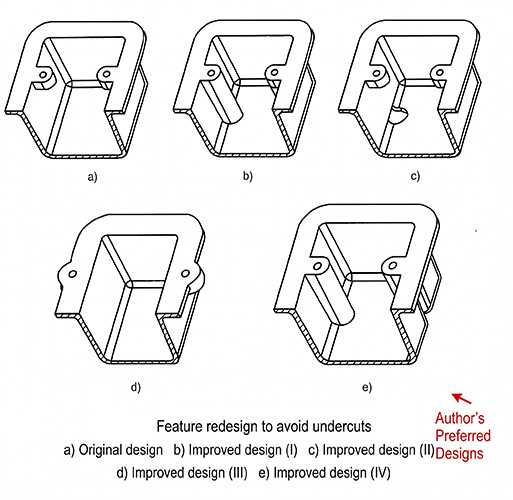

As demonstrated in alternative design layouts, altering internal profiles can completely remove the need for lateral extraction mechanisms.

Optimizing the Tooling and Production Strategy

Mitigating Mold Modification Expenses

Modifying a mold after its initial fabrication is exceptionally expensive. Flawed component designs lead to repeated tooling revisions, driving up the final unit price. Designing parts with high "injectability" ensures better post-molding quality and reduces the need for expensive mold corrections.

The fundamental rule of tooling revision is that removing steel from the mold is relatively inexpensive, whereas adding steel is highly complex and costly. Because removing mold material corresponds to adding plastic to the part, designers unsure about specific dimensions should leave the part slightly smaller, allowing the mold to be safely machined larger later.

To further reduce revision risks, engineering teams must validate functionality through CAE analysis, kinematic simulation, and physical prototyping before finalizing the mold architecture.

Cavitation and Runner System Selection

The number of cavities within a mold dictates the production throughput. Higher cavitation increases tooling complexity but lowers the unit processing cost and distributes the runner material waste across more parts.

Choosing between cold and hot runner systems also impacts the long-term economics of producing Custom Plastic Parts. Cold runners generate scrap material with every cycle, which is detrimental when utilizing expensive resins. Hot runner systems eliminate this waste, shorten the cycle time, and bypass the need for secondary gate trimming. While hot runners require a higher initial capital outlay, they often yield superior automated production efficiency.

Assembly and Finishing Considerations

Efficient Fastening and Gate Placement

Assembly labor significantly contributes to overall manufacturing expenses. Traditional mechanical fasteners like screws or ultrasonic welding require secondary operations. Integrating snap-fits directly into the component geometry enables rapid, tool-less assembly and disassembly, offering the lowest-cost fastening solution.

Beyond assembly, post-processing tasks should be minimized. Engineers should design gates that sever automatically or hide them within the product interior to avoid secondary machining. Similarly, locating parting lines on internal surfaces removes the need to manually trim flash from visible areas.

Conclusion

By consolidating functions, minimizing material usage, and actively eliminating undercuts, manufacturers can dramatically simplify tooling architectures. Avoiding unnecessarily strict tolerances and utilizing strategic mold designs ensures that the final product is economically viable. This Injection Molding Guide highlights that the most impactful financial decisions occur during the initial design phase. Through rigorous planning and optimization, businesses can successfully scale their Custom Plastic Parts while protecting long-term profit margins.
