Aluminum, titanium, and magnesium show up in almost every industry, including automotive, aerospace, electronics, furniture hardware, largely because they're lightweight, machinable, and reasonably strong. But put them in a humid environment, expose them to salt spray or cleaning chemicals, and the surface starts to degrade. Anodizing was developed to solve exactly that problem.
Rather than layering something on top of the metal, the process converts the metal's own surface into a protective oxide. The result holds up where paint chips and plating peels. This article breaks down how anodized finishes work, which type makes sense for different applications, and what to watch out for before you commit to a process.
What Is an Anodized Finish?
An anodized finish is an oxide layer that grows directly out of the metal surface through an electrochemical reaction—not something applied over it. The part is connected to the positive terminal of a circuit (the anode, hence the name) and submerged in an acidic electrolytic bath.Oxygen ions in the solution react with the metal to form an oxide film on the aluminum surface.
Furthermore, the oxide layer doesn't just cover the metal surface; it grows both inside and outside the metal. That means anodizing affects your part dimensions. For most general applications the change is negligible—but if you're working with threaded holes, press fits, or precision mating surfaces, you need to account for it during design. Skipping that step is a reliable way to end up with parts that don't assemble.
How Does the Anodizing Process Work?
The process runs through several stages. Here's how it typically goes:
- Surface preparation– bead blasting, polishing, or chemical etching, depending on the target finish
- Anodizing– parts are racked and submerged; voltage, current density, temperature, and time are dialed in based on the spec
- Rinsing– deionized water and solvents flush residual chemistry off the part
- Coloring (optional)– dye bath for most colors; metallic salt solutions for bronze or black
- Sealing– pores are closed using hot deionized water, mid-temperature salt solutions, or cold nickel-fluoride chemistry
The step most people underestimate is surface preparation. Because the anodized layer follows the texture underneath, machining marks and scratches stay visible after treatment. Whatever condition the part is in when it enters the bath is largely what you get at the end—the anodizing process has no interest in hiding your prep work.
Types of Anodized Finishes
There are four main types. The right one depends on how thick you need the layer, how hard, and what the end use looks like.
Type I – Chromic Acid Anodize
Type I uses chromic acid and produces a very thin layer, usually between 0.5 and 2.5 µm. The oxide is dense and tight. Color options are narrow—mostly grey—but the minimal thickness means almost no dimensional impact. That makes it the right call for precision aerospace components, military hardware, and anything where fatigue strength or tight fit matters more than appearance. Outside those specific cases, most manufacturers don't reach for Type I.
Type II – Sulfuric Acid Anodize
This is the most common anodizing process. Sulfuric acid at 15–20% concentration builds layers from around 2.5 to 25 µm. It dyes well, which means you can hit nearly any color. Corrosion and wear resistance are solid without being extreme.
When customers ask about aluminium anodized finish for consumer electronics parts, automotive trim, or architectural hardware, Type II is almost always where we start the conversation. It handles volume production well, sits at a reasonable price point, and the color flexibility is hard to match with other processes. For most commercial applications, it's the obvious default.

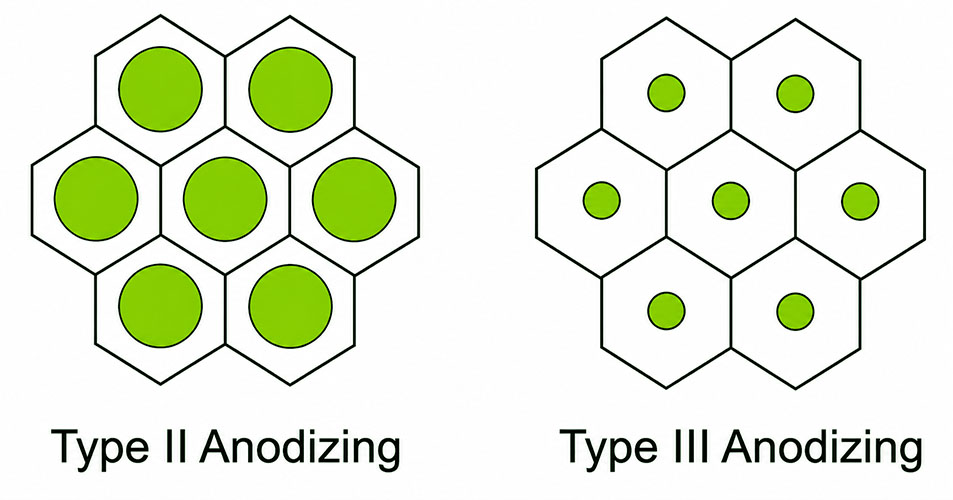

Type III – Hardcoat Anodize
Same acid chemistry as Type II, but lower bath temperatures and higher current density push the layer thickness to anywhere between 12 and 150 µm. The resulting surface is harder and denser—surface hardness can reach Rockwell 70C. Color tends to go dark grey or black at those thicknesses.
Hydraulic cylinders, industrial tooling, defense parts—applications where the surface takes real punishment. If wear resistance is the main spec driver, Type III is the answer.
Clear Anodized Finish
The clear anodized finish skips the dye step entirely. The oxide layer forms but stays transparent, so the natural aluminum color shows through. Architects and electronics designers frequently specify this when they want the metallic look without any coating on top.
This finish is harder to get right than it looks. Alloys with higher silicon or copper—2000 and 7000 series—tone unevenly and produce visible variation across a batch. For predictable clear anodized finish results, 6000 series alloys are the safer bet; 6061 in particular rarely causes problems. Surface prep also matters more here than with dyed finishes, since there's no color to mask inconsistency.
Phosphoric Acid Anodize
This one is easy to misread as a protective finish—it isn't. The layer is extremely thin (under 2.5 µm) and highly porous. Its job is surface preparation for adhesive bonding and primer adhesion, primarily in aerospace structural assemblies where bond-line performance is safety-critical. If that's not your application, you likely don't need it.
Anodizing vs. Powder Coating vs. Electroplating
In surface treatment, anodizing, powder coating, and electroplating are the most frequently mentioned by customers and are often compared.
Anodizing vs. powder coating: Powder coating sprays a charged polymer onto the surface and cures it in an oven. You get a wider color palette and it handles complex shapes reasonably well. The tradeoff is that it sits on top of the metal—edges chip, dimensional variation runs higher, and over time adhesion degrades. When a finish that won't peel or delaminate under mechanical stress is the requirement, anodizing is the better-engineered choice.
Anodizing vs. electroplating: Electroplating deposits a foreign metal—zinc, nickel, chromium—onto the part surface through an electrolytic bath. It can produce brighter, more reflective results and works on a broader range of base materials.However, the coating is located on a metal surface, and the edges are prone to cracking and the dimensional deviation is large. According to customer feedback, the adhesion will decrease after the parts have been used for a period of time.
Anodizing converts the substrate itself, so that there will be no problem with decreased adhesion.
Common Applications of Anodized Parts
The aluminium anodized finish shows up across a wide range of sectors:
- Aerospace– structural panels, fasteners, hydraulic components (Type I or III)
- Automotive– engine covers, trim parts, wheel components (Type II with color)
- Electronics– enclosures, heat sinks, display bezels (clear or dyed Type II)
- Medical– instrument housings, titanium implant components
- Architecture– curtain wall extrusions, window frames, decorative panels
What to Know Before You Anodize
A few practical points that are easy to overlook.
Alloy selection matters more than most people expect. 1000, 5000, and 6000 series alloys anodize predictably. 2000 and 7000 series, with higher copper and zinc content, are harder to control and tend to produce patchy or darker-than-expected finishes. If your design has any flexibility on alloy, a more anodizing-friendly series is the smarter pick—it avoids process complications that add time and cost down the line.
Rack marks are unavoidable—decide early where they go. Parts have to be held in the bath somehow, and wherever the rack contacts the part, you get an uncoated spot. Calling out which surface is the show face and which side takes the marks should happen at the design stage, not during production.
Bath chemistry drifts over long runs. Metal ion concentration climbs, impurities accumulate, and oxide quality starts to vary if nobody's watching the bath. For high-volume orders, consistent monitoring isn't optional—it's what keeps part 1 and part 500 looking the same.
Conclusion
Picking the right anodized finish comes down to a few clear questions: How thick does the layer need to be? What are the wear and corrosion demands? Does the part need color, or should the aluminum show through? Type I is the call for precision applications where dimensional change is unacceptable. Type II covers the bulk of general commercial work. Type III is for heavy-duty service.
If you desire a natural metallic finish, we offer a one-stop surface finish service. LVMA CNC regularly supplies aluminum parts to customers in the automotive, electronics, and industrial hardware industries, including parts requiring Type II anodizing and Type III hard anodizing finishes. Contact LVMA CNC for a fast quote.
